RO101SV

80G RO membrane, European Design Faucet, Saving Space Pump System



Designed for where feed water has very low water pressure (under 45psi).



RO Technology- even under low water pressure
The RO101SV reverse osmosis water purification system is one of the finest units in its class. It uses high quality booster pump can provides 100psi water pressure to pass through the membrane even under low water pressure area. The booster pump prevents damage and prolongs the life of membrane and improve the TDS rejection.

RO101-SV offers safe, good-tasting water at your fingertips!
It meets all your water quality needs. With 80 gallons of clear, refreshing water that is not only healthy to drink, but good for cooking. RO101SV system provides safe, pure water using Reverse Osmosis Technology. It is one of the finest units in its class. It's capable of removing over 95% of total dissolved solids, +99% of all organics and +99% of all bacteria.

This system hides away under your sink and puts healthy great-tasting water at your fingertips. It meets all your water quality needs. Our RO101SV comes complete with a NSF certified 3.2 gallons water storage tank and all the necessary fittings, installation kits, extra color 1/4" tubing, and a long-reach chrome faucet. We don't know of any other system at our price that can approaches its performance.

Private label is very welcome !

Features:
3.2 Gallons NSF Standards Water Storage Tank.
FDA Approved Polypropylene Made Flat Cap Housing (double o'ring).
Safety approval: TUV (EN60950) & CE MARK
Automatic Shut-off Valve
Flow Restrictor, Stainless Steel Check Valve.
European design attractive faucet
Feed water connector & deliver valve
Drain Saddle Valve.
Four Color Coded 1/4 inch Tubing for System Connection
Completely Assembled & Water leaking testing
100% Factory Tested and Sterilized Ready for Installation.
Installation Instruction.

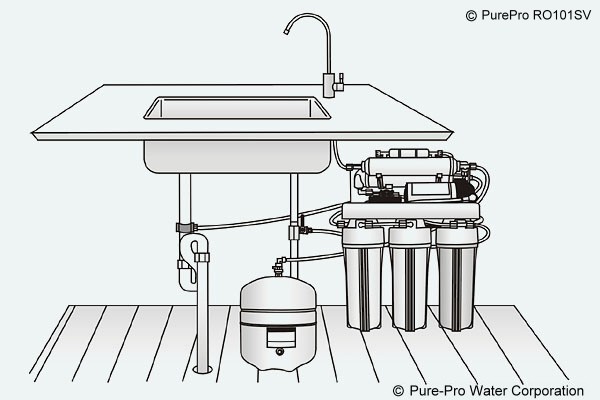

RO101SV Flow Diagram

RO101SV comes complete with a NSF standard 3.2 gallons water storage tank and all the necessary fittings, installation kits, color 1/4" tubing, installation manual and a European style faucet.

RO101SV CARTRIDGE FILTERS
(Stage 1) 5 Micron Sediment Filter :
With only five micron rating. It is effective in removing dirt, rust and sand particles.
(Stage 2) Carbon Block Filter:
It takes out 99% of the chlorine and organic chemicals. It provides enhanced reduction of taste, odor, and color.
(Stage 3) 1 Micron Sediment Filter :
With only 1 micron rating, provides effective filtration to protect your membrane. It provides for improved membrane performance up to 95% of TDS rejection.
(Stage 4) Reverse Osmosis Membrane:
A thin film composite (TFC) high quality membrane that processes 80 gallons per day. It remove the following hard water contaminants that may be present in your water: lead, cooper, barium, chromium, mercury, sodium, cadmium, fluoride, nitrite, nitrate, and selenium.
(Stage 5) Post Carbon filter:
This carbon post filter removes objectionable tastes and odors to enhance the quality of your drinking water. We are using NSF approved post carbon to guarantee the taste of water.

Specifications:
Membrane: 80 GPD / 302 LPD
With a transformer, available in 110Volt, 220Volt or 240Volt (50/60Hz).
Safety approval: TUV (EN60950) & CE MARK
Operation pressure: 5 -80 psi
Dimensions: (cm) 37 (L) x 45(H) x 20 (W) - system
                   (cm) 28 (L) x 28(W) x 35 (H)- tank
Weight: 10 kg - system
              4 kg - tank

Model Number
RO-105 :      RO105 RO system
RO101SV :   RO105 with booster pump

Why is reverse osmosis better?
Reverse Osmosis (RO) drinking water systems include mechanical filtration to remove particles, carbon absorption and absorption to remove chloring, taste, odor and chemical contaminants, as well as membrane separation down to 0.0001 microns. RO membranes remove dissolved solids at the ionic level. No other purification system can provide better removal.



RO Systems provide the best quality drinking water for your family.
Why is Reverse Osmosis better?



product catalog (7mb)
download product catalog
upgrade RO units with 6th stage filter



★ What is the difference between RO101SV and EC105P ?
They are different in the total of $10.00 dollars :
1. upgrade faucet : $6.50 ( RO101SV comes with European designed faucet.)
2. upgrade membrane: $3.00 (RO101SV comes with 80gpd membrane, EC105P come with 50gpd)
3. upgrade flow restrictor : $0.80 (RO101SV use flow restrictor. EC105P use mini flow restrictor)
